Pro Tech Machining, Inc.
Equipment List

Milling Equipment
Fadal VMC 6030
  30 pos. tool changer
  62.5" x 30" travel, 30" Z travel
Matsuura MC-800VF 3 Axis CNC
  30 pos. tool changer
  31” x 17” XY travel, 19” Z travel
Matsuura MC-600V 3 Axis CNC
  30 pos. tool changer
  23” x 16” XY travel, 18” Z travel
Milltronics RH20 3 axis CNC
  16 pos. tool changer
  40”x 20” XY travel, 24” Z travel
Bridgeport/Acu-rite Millpwr 2 Axis CNC
  36” x 12” XY Travel

Turning Equipment
Milltronics ML17 CNC Lathe
  8 pos. tool changer
  17” swing over bed, 2 1/4” spindle   thru hole
Milltronics ML18 CNC Lathe (new 2006)
  8 pos. tool changer
  18.7” swing over bed, 2 1/2” spindle   thru hole
Victor 1660 manual turning lathe
  16” swing over bed, 60” between   centers
  2” spindle thru hole

EDM Equipment
Charmilles Robofil 310 Wire EDM
  15.7” x 9.8” x 15.7” XYZ travel
Hansvedt Sinker EDM
  40 amp power supply, 40 gal. tank
Japax SBM
  Start Hole Burner .010” - .125”   diameter holes

Design & Programming Software
Auto CAD 2004
Esprit Wire EDM & Milling
programming software
Master Cam EDM & Milling
programming software

Surface Grinding Equipment
Okamoto ACC16-32X Hydraulic surface grinder
  16” x 32” variable chuck
Kent CS-1020 AHD Hydraulic surface grinder
  Walker 10” x 20” variable chuck
Matsui MSG-205 MH manual surface grinder
  Mitutoyo 2 axis digital readout
  Walker 6”x 18” manual chuck
Kent KGS-616S manual surface grinder
  Acu-rite 2 axis digital readout
  Walker 6”x 14” variable chuck

Inspection Equipment
36” x 60” Granite surface plate Grade A
36” x 48” Granite surface plate Grade A
Hardness Tester
Stereo Scopes
Nikon V-12A Optical Comparator w/Quadra-Chek
Starrett Master Height Gauge
Fowler Trimos Electronic Height gauge
Mitutoyo tool makers micro scope
Bore gauges & other miscellaneous inspection equipment

Heat Treat Equipment
Lucifer HL82-K4 Heat Treat Furnace

Material Handling Equipment
Fork Lift
  3,900 lb lift
Hydraulic Die Cart
  1,000 lb lift
Chain Hoist
  1 ton lift

Misc. Equipment
Grob vertical band saw
Johnson Dake horizontal band saw
Deckel tool and cutter grinder
Sterling drill sharpener
Eaton 15 HP air compressor w/air dryer

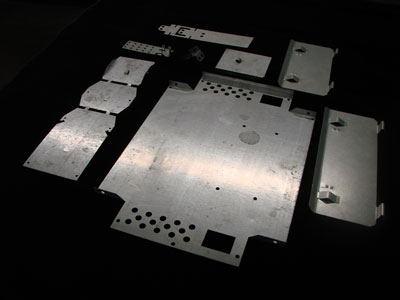

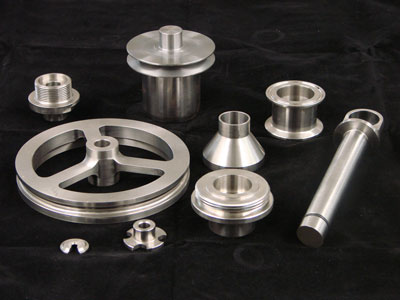

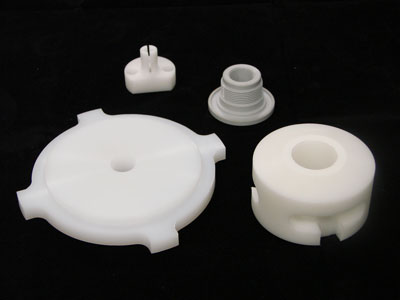

We provide a wide range of precision job shop machining services for Central Minnesota:

  • CNC and Manual Milling
  • CNC and Manual Turning
  • EDM Machining (Wire & Sinker)
  • Tool and Die Work
  • Stamping and Forming Dies
  • Mold Repair
  • Jigs & Fixtures
  • Prototypes
  • Production Runs
  • Special Equipment Build
  • General Machining and Repair

At ProTech Machining we look forward to working with you on projects large or small. Why not let us give you a quote?
